Big Sale for bundle with ram and storage:
1. Upgrade DDR4 ram to 2666/2400MHz free!
2. Upgrade strong signal dual band AC WiFi&Bluetooth free!
3. Upgrade to fast M.2 NVME/PCIE3.0x4 SSD free!
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
Graphics |
Core i9-10880H |
8 cores, 16 threads |
16M |
2.30 GHz |
5.10 GHz |
Intel UHD Graphics 630 350MHz-1.25GHz |
Core i7-10750H |
6 cores, 12 threads |
12M |
2.60 GHz |
5.00 GHz |
Intel UHD Graphics 630 350MHz-1.15GHz |
Core i9-9880H |
8 cores, 16 threads |
16M |
2.30 GHz |
4.80 GHz |
Intel UHD Graphics 630 350MHz-1.20GHz |
Core i7-9750H |
6 cores, 12 threads |
12M |
2.60 GHz |
4.50 GHz |
Intel UHD Graphics 630 350MHz-1.15GHz |
Core i7-8750H |
6 cores, 12 threads |
9M |
2.20 GHz |
4.10 GHz |
Intel UHD Graphics 630 350MHz-1.10GHz |
Core i7-1065G7 |
4cores,8threads |
8M |
1.30 GHz |
3.90 GHz |
Intel Iris Plus Graphics 940 |
Core i5-1035G4 |
4cores,8threads |
6M |
1.10 GHz |
3.70 GHz |
Intel Iris Plus Graphics 940 |
Core i7-1165G7 |
4cores,8threads |
12M |
/ |
4.70 GHz |
Intel Iris Xe Graphics 1.30GHz |
Product Highlight
1)-Advanced newest intel core processor, assure more powerful performance for gaming, office, drawing;
2)-Advanced Intel Iris plus graphics 940 on i7 1065G7/i5 1035G4, performance match to MX250 dedicated graphic card;
3)-2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;
4)-2*M.2 2280 SSD;
5)-2*Realtek Gigabit Ethernet Lans+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/Bluetooth4.x;
6)-1xDP 4K@60Hz and 1xHDMI1.4-compatible 4K@30Hz, support dual 4K display synchronously;
7)-Slim volume: Rugged aluminum alloy case and silent fan dual cooling, assure 7×24 stable performance;
8)-Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
1x Mini PC
Notice
1. Barebone Mini PC (“No Ram No HD No WiFi” bundle) package DO NOT include WiFi, if you need, please pay extra US $7 atthis link. Other bundles include WiFi.
2. DO NOT buy Barebone Mini PC (“No Ram No HD No WiFi” bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble.We DO NOT compensate for buyer's man-made damage and faulty.
3. Price DO NOT include any destination cost like tariff, VAT, storage fee, remote dispatching fee etc.
Basic Information: |
|
CPU |
Onboard Intel Core CPU |
TDP |
15W/45W |
Motherboard |
140 x 130mm customized size |
Chipset |
200/400 series |
Memory |
2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB DDR4-2133/2400/2666 |
OS |
Windows 10/Linux |
PXE |
YES |
Audio |
Intel High Definition Audio Controller |
Network |
2 x Onboard Realtek RTL8111 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN |
Video |
Intel® Graphics |

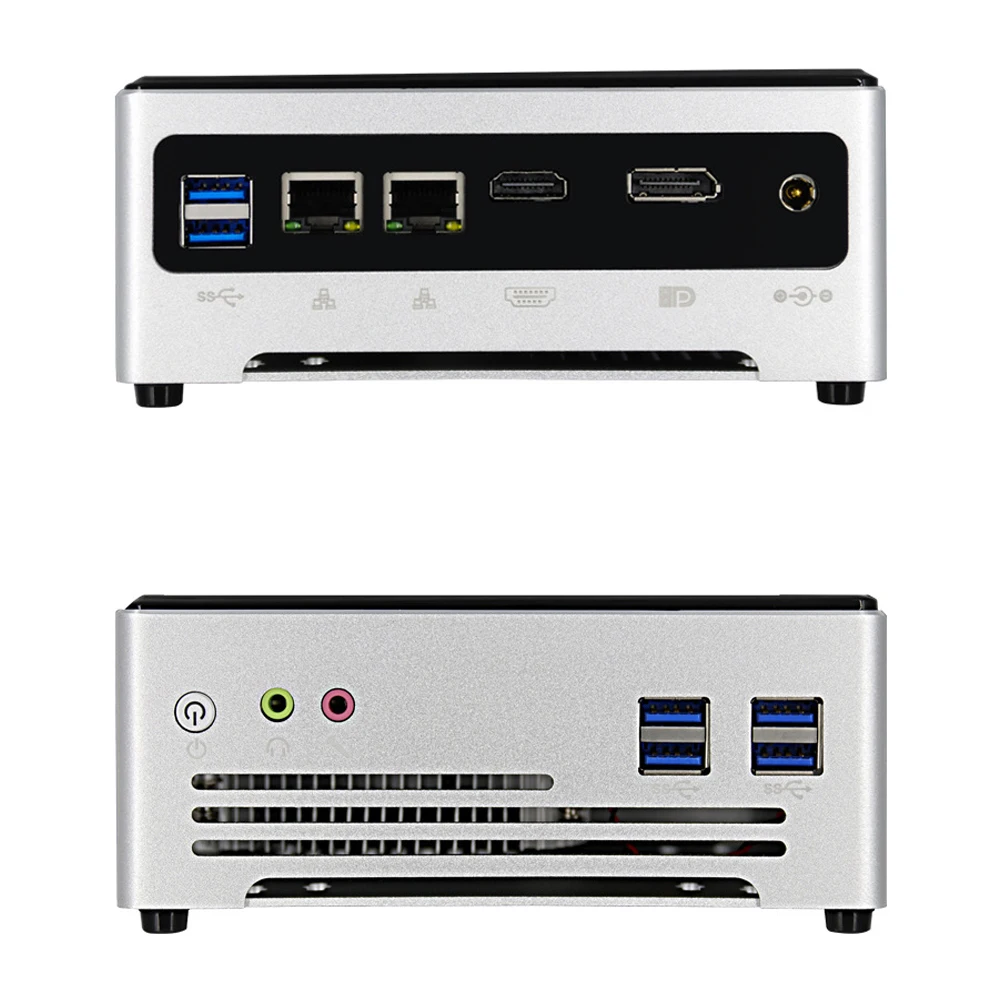

Input/output port |
|
Switch |
1 x Power On/Off Switch |
Power |
1 x Power In |
USB |
6 x USB3.0 |
Display |
1 x DP, 1 x HDMI 1.4 |
LAN |
2 x RJ45 Giga LAN |
Audio |
1 x MIC, 1 x SPK |
Storage |
|
M.2 |
2 x M.2 slot for 2280 SSD |
Wi-Fi |
|
Module |
1 x M.2 slot for Wi-Fi module |
Antenna |
2 x inner RF cables and without external antenna |
Power and Working Environment |
|
Input |
DC100-240V AC/50-60Hz |
Output |
DC +12V~+19V |
Operating Temperature |
0/70 Centigrade |
Relative Humidity |
10%~85% |
Product Dimension & Details |
|
Size |
137*150*60mm |
Weight |
Net 0.7kg, Gross 1.5kg |
Shell |
PVP top and aluminum alloy body |
Cooling Mode |
With a copper cooling fan |
Functions |
AWAL, PXE, Wake On LAN, RTC |
Package Content |
|
Standard |
1xMini PC, 1xPower Adapter, 1xPower Cord, 4xMount Screws |
Optional |
1xUser Manual |

1. USB Infrared remote (can turn power off but not on) add extra cost US$14.
2.Genuine OEM windowslicense stickeradd extra cost 35$.
3.500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$,2TB 2.5'' HDD add extra 100$.
Upgrading link://www.aliexpress.com/item/1005001775748070.html
(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for…)
